HPC-5474-9

Front Rend



Floor Plan 1



Floor Plan 2



Related House Plans
HPC-5560-9
house plan thumbnail 5560 sq. ft.

4 Bedrooms
5 Baths
3 Car Garage
view plan


PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS
House Floor Plans and related home images are COPYRIGHTED © by home designers and architects.
4 Bedroom -  5 Baths  - 0 Half Baths

Total Living Area:   5474

Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.





Construction Terms View Plans by Designer Get an estimated cost to build your home.

HOUSE PLAN DETAILS:
Heated Sq Ft: 5474   Width: 94 ft. - 0 in.
Unheated Sq Ft: 2126   Depth: 71 ft. - 0 in.
Avail. Foundation(s): Slab / Crawlspace   Exterior: Brick / Siding / Stucco
Garage: Yes   # of Cars: 3
Roof Pitch: 8 in 12   Sec. Roof Pitch: None
# of Floors: 2   Bonus Room: No
Roof Type: Hip/Gable   Main Ceiling Height: 12 ft.-0 in.
Ridge Height: n/a   Exterior Wall Type: 2x4


View Additional house plans by this Designer



PLAN PACKAGES:
CAD Files: $2600 Reproducible Sets: $1460
PDF Files: $1300 10 Set Package: Unavailable
8 Set Package: Unavailable 6 Set Package: Unavailable
5 Set Package: $1380 4 Set Package: $1360
3 Set Package: Unavailable 1 Set Package: Unavailable
Review Set: Unavailable

AVAILABLE PLAN OPTIONS:
Materials List: Yes  ($90) Right-Reading Reversed Sets: No
Mirror-Reversed Sets: Yes  ($60) Modifications: Yes(Call for Details)
Extra Sets: Yes ($20)(Call for Pricing) Basement Foundation Option: $250

Questions about house plan modifications? See our Basics and Frequently Asked Questions section.


If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options, etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .

House Plan Design Line
House Main Floorplan:
Click on house plans image to enlarge
House Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line

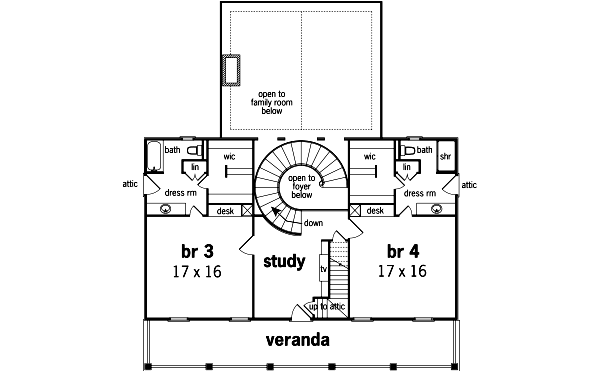

Second Floor/Bonus:

Click on house plans image to enlarge
Floor Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line
Front Elevation:


Click on house plans image to enlarge
Home Designs and related home images are COPYRIGHTED © by home designers and architects.
