HPC-5086-24
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Floorplans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| STANDARD FRAME,LARGE GREAT ROOM WITH FIREPLACE, KITCHEN WITH EATING BAR,2 CAR GARAGE, DINING ROOM, COVERED ENTRY PORCH, OFFICE,LARGE MASTER BATHROOM WITH DOUBLE SINKS, MUD/UTILITY ROOM, LARGE RECREATION RROM, GAME ROOM |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 5086 | Width: | 84 ft. - 0 in. | ||
| Unheated Sq Ft: | 840 | Depth: | 66 ft. - 0 in. | ||
| Avail. Foundation(s): | Basement | Exterior: | Siding / Stone | ||
| Garage: | Yes | # of Cars: | 2 | ||
| Roof Pitch: | 7 in 12 | Sec. Roof Pitch: | None | ||
| # of Floors: | 1 | Bonus Room: | No | ||
| Roof Type: | Gable | Main Ceiling Height: | 9 ft.-0 in. | ||
| Ridge Height: | 20 ft. - 1 in. | Exterior Wall Type: | 2x6 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1400.00 | Reproducible Sets: | $1300.00 | ||
| PDF Files: | $1400.00 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | $1200.00 | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $975.00 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | Unavailable | ||
| Review Set: | $100.00 | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: |
No (Call for Availability) |
Right-Reading Reversed Sets: | Yes ($100.00) | ||
| Mirror-Reversed Sets: | Yes ($0) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($100.00)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

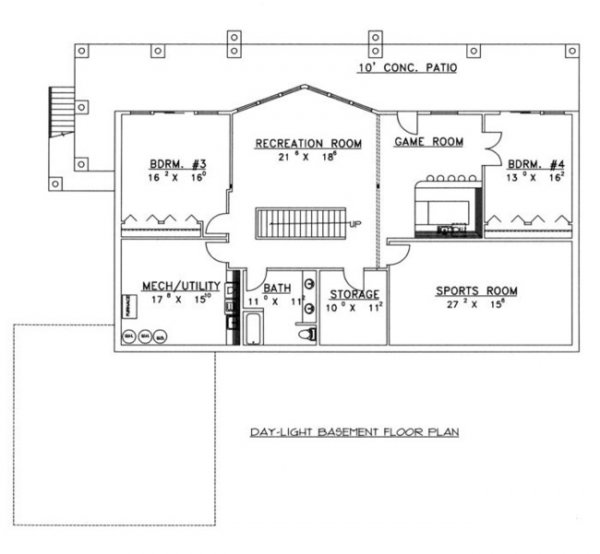

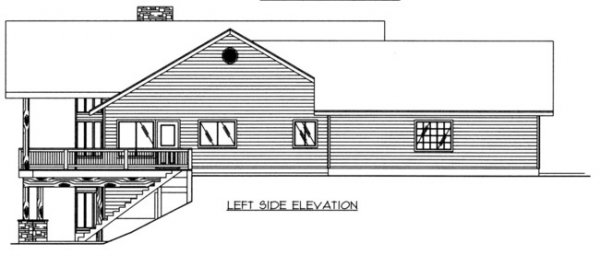

 Floorplans and related home images are COPYRIGHTED © by home designers and architects. Basement:   Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Unique House Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation:   Unique House Plans and related home images are COPYRIGHTED © by home designers and architects. Side Elevation: >House Floorplans and related home images are COPYRIGHTED © by home designers and architects. |
|
