PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS
Homeplans and related home images are COPYRIGHTED © by home designers and architects.
3 Bedroom -  2 Baths  - 0 Half Baths

Total Living Area:   2024

Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.




This traditional split bed room plan has a lot to offer. Can be build as a 2, 2 1/2, or 3 bath plan with 3 or 4 bedrooms. Raised ceiling in great room. Note how close the master suite is to the refrigerator. Large master suite. Bonus area above the garage is an inexpensive way to get more space for a little money per square foot. A beautiful and versatile plan. Raised bar in kitchen for conversation with friends yet they can stay out of the work triangle. Jet tub. Formal dining and breakfast.



Construction Terms View Plans by Designer Get an estimated cost to build your home.

HOUSE PLAN DETAILS:
Heated Sq Ft: 2024   Width: 72 ft. - 10 in.
Unheated Sq Ft: 757   Depth: 41 ft. - 0 in.
Avail. Foundation(s): Slab / Crawlspace / Basement   Exterior: Brick / Siding / Stucco
Garage: Yes   # of Cars: 2
Roof Pitch: 10 in 12   Sec. Roof Pitch: 12 in 12
# of Floors: 2   Bonus Room: Yes
Roof Type: Hip/Gable   Main Ceiling Height: 9 ft.-0 in.
Ridge Height: 22 ft. - 0 in.   Exterior Wall Type: 2x4


View Additional house plans by this Designer



PLAN PACKAGES:
CAD Files: $1655.00 Reproducible Sets: $1155.00
PDF Files: $1085.00 10 Set Package: Unavailable
8 Set Package: Unavailable 6 Set Package: Unavailable
5 Set Package: $960.00 4 Set Package: Unavailable
3 Set Package: Unavailable 1 Set Package: $900.00
Review Set: Unavailable

AVAILABLE PLAN OPTIONS:
Materials List: Yes  ($130.00) Right-Reading Reversed Sets: Yes  ($150.00)
Mirror-Reversed Sets: Yes  ($50.00) Modifications: Yes(Call for Details)
Extra Sets: Yes ($60.00)(Call for Pricing) Basement Foundation Option: Call for Availability

Questions about house plan modifications? See our Basics and Frequently Asked Questions section.


If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options, etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .

House Plan Design Line
House Main Floorplan:
Click on house plans image to enlarge
House Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line

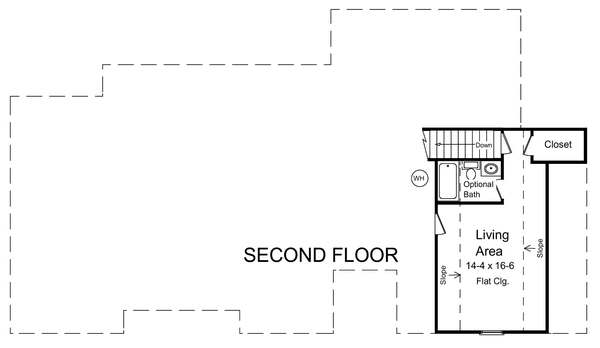

Second Floor/Bonus:

Click on house plans image to enlarge
Floorplans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line
Basement:

Click on house plans image to enlarge
Unique House Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line
Front Elevation:


Click on house plans image to enlarge
House Designs and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line

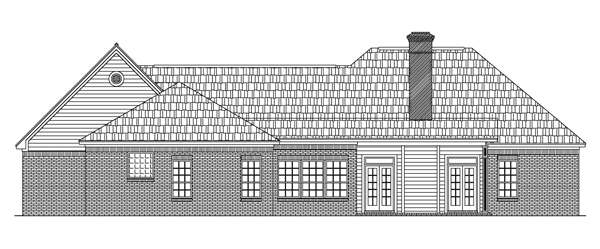

Rear Elevation:

Click on house plans image to enlarge
Unique House Plans and related home images are COPYRIGHTED © by home designers and architects.
