PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS
Homeplans and related home images are COPYRIGHTED © by home designers and architects.
3 Bedroom -  2 Baths  - 0 Half Baths

Total Living Area:   1503

Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.




This plan can be built with or without the garage. Open plan with raised ceiling in great room with gas logs and plenty of light. Kitchen features the sought after island and raised bar. One large dining area. Two large bedrooms and closets plus flex space for study or 3rd bedroom. Large garage with storage and shop area. Beautiful architectural shapes and building materials.



Construction Terms View Plans by Designer Get an estimated cost to build your home.

HOUSE PLAN DETAILS:
Heated Sq Ft: 1503   Width: 64 ft. - 8 in.
Unheated Sq Ft: 787   Depth: 42 ft. - 0 in.
Avail. Foundation(s): Slab / Crawlspace   Exterior: Brick / Stucco
Garage: Yes   # of Cars: n/a
Roof Pitch: 10 in 12   Sec. Roof Pitch: None
# of Floors: 1   Bonus Room: No
Roof Type: Hip/Gable   Main Ceiling Height: 9 ft.-0 in.
Ridge Height: 24 ft. - 5 in.   Exterior Wall Type: 2x4


View Additional house plans by this Designer



PLAN PACKAGES:
CAD Files: $1525.00 Reproducible Sets: $1085.00
PDF Files: $1020.00 10 Set Package: Unavailable
8 Set Package: Unavailable 6 Set Package: Unavailable
5 Set Package: $920.00 4 Set Package: Unavailable
3 Set Package: Unavailable 1 Set Package: $860.00
Review Set: Unavailable

AVAILABLE PLAN OPTIONS:
Materials List: Yes  ($130.00) Right-Reading Reversed Sets: Yes  ($150.00)
Mirror-Reversed Sets: Yes  ($50.00) Modifications: Yes(Call for Details)
Extra Sets: Yes ($60.00)(Call for Pricing) Basement Foundation Option: Call for Availability

Questions about house plan modifications? See our Basics and Frequently Asked Questions section.


If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options, etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .

House Plan Design Line
House Main Floorplan:
Click on house plans image to enlarge
Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line
Front Elevation:


Click on house plans image to enlarge
Home Floorplans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line

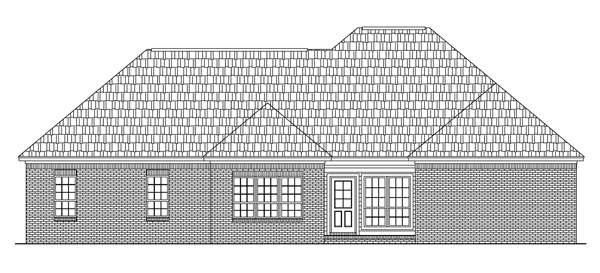

Rear Elevation:

Click on house plans image to enlarge
Unique House Plans and related home images are COPYRIGHTED © by home designers and architects.




Designer Comments:
House Plan Design Line
Garage: 481 sq. ft., Storage: 135 sq. ft.
