HPC-2003-1
The Winchester
| PLEASE SCROLL DOWN TO VIEW FULL HOUSE PLAN DETAILS AND PHOTOS |
House Floorplans and related home images are COPYRIGHTED © by home designers and architects.
Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.
| Great house with a very functional split floorplan layout. This home offers many of the features for which many have asked, including an expansive master suite with his and her walk-in closets, jet tub, and walk-in shower. Large sunroom / breakfast area for those lazy weekend mornings. Large great room with built-in cabinets and gas log fireplace. Plenty of storage space. Large utility room. Home office space with optional half-bath. This could be your next home! |
|
|||
|
|
|
|
| HOUSE PLAN DETAILS: | |||||
| Heated Sq Ft: | 2003 | Width: | 65 ft. - 0 in. | ||
| Unheated Sq Ft: | 718 | Depth: | 56 ft. - 8 in. | ||
| Avail. Foundation(s): | Slab / Crawlspace / Basement | Exterior: | Brick / Siding | ||
| Garage: | Yes | # of Cars: | 2 | ||
| Roof Pitch: | 8 in 12 | Sec. Roof Pitch: | 12 in 12 Dormers | ||
| # of Floors: | 1 | Bonus Room: | No | ||
| Roof Type: | Gable | Main Ceiling Height: | 9 ft.-0 in. | ||
| Ridge Height: | 22 ft. - 1 in. | Exterior Wall Type: | 2x4 | ||
View Additional house plans by this Designer |
|||||
| PLAN PACKAGES: | |||||
| CAD Files: | $1655.00 | Reproducible Sets: | $1155.00 | ||
| PDF Files: | $1085.00 | 10 Set Package: | Unavailable | ||
| 8 Set Package: | Unavailable | 6 Set Package: | Unavailable | ||
| 5 Set Package: | $960.00 | 4 Set Package: | Unavailable | ||
| 3 Set Package: | Unavailable | 1 Set Package: | $900.00 | ||
| Review Set: | Unavailable | ||||
| AVAILABLE PLAN OPTIONS: | |||||
| Materials List: | Yes ($130.00) | Right-Reading Reversed Sets: | Yes ($150.00) | ||
| Mirror-Reversed Sets: | Yes ($50.00) | Modifications: | Yes(Call for Details) | ||
| Extra Sets: | Yes ($60.00)(Call for Pricing) | Basement Foundation Option: | Call for Availability | ||
Questions about house plan modifications? See our Basics and Frequently Asked Questions section. |
|||||
|
If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options,
etc),

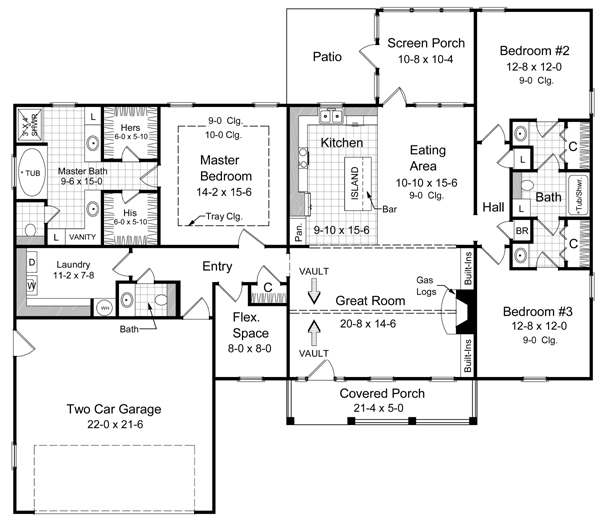

call us at 1-888-560-1672 or email us at questions@houseplancentral.com .  House Main Floorplan:
|
|||

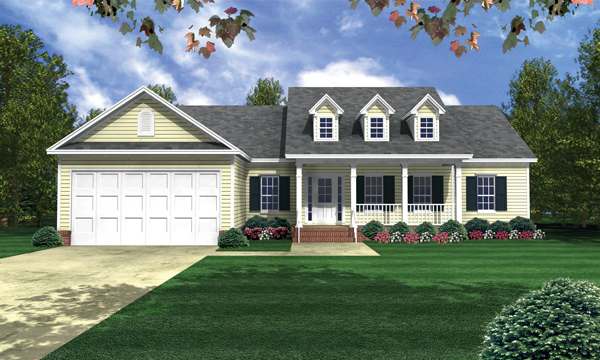

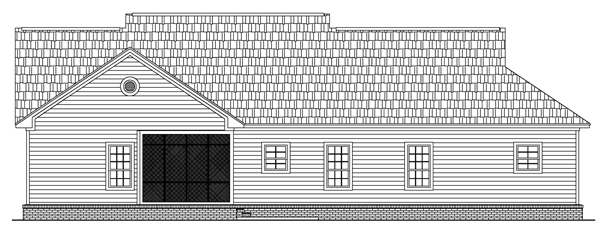

 Home Designs and related home images are COPYRIGHTED © by home designers and architects. Front Elevation:   Home Floorplans and related home images are COPYRIGHTED © by home designers and architects. Rear Elevation:   Home Plans and related home images are COPYRIGHTED © by home designers and architects. |
|
