0 Bedroom -  0 Baths  - 0 Half Baths

Total Living Area:   0

Note: Total Living Area does not include garage, covered porch, deck, patio, storage square footage, etc.




This garage plan offers a great layout which provides for maximum flexibility. On the first floor, you'll enjoy the ample space provided for your two vehicles and also for the separate storage area to locate lawn equipment, tools, etc. The upstairs area includes an 8' ceiling height, in the middle portion of the space, which can be used for additional "attic overflow" and/or much needed work space. Great addition to any home!



Construction Terms View Plans by Designer Get an estimated cost to build your home.

HOUSE PLAN DETAILS:
Heated Sq Ft: 0   Width: 24 ft. - 0 in.
Unheated Sq Ft: 1003   Depth: 26 ft. - 0 in.
Avail. Foundation(s): Slab   Exterior: Brick
Garage: Yes   # of Cars: 2
Roof Pitch: 12 in 12   Sec. Roof Pitch: None
# of Floors: 2   Bonus Room: Yes
Roof Type: Gable   Main Ceiling Height: 9 ft.-0 in.
Ridge Height: 23 ft. - 0 in.   Exterior Wall Type: 2x4


View Additional house plans by this Designer



PLAN PACKAGES:
CAD Files: $625.00 Reproducible Sets: $430.00
PDF Files: $405.00 10 Set Package: Unavailable
8 Set Package: Unavailable 6 Set Package: Unavailable
5 Set Package: $305.00 4 Set Package: Unavailable
3 Set Package: Unavailable 1 Set Package: Unavailable
Review Set: Unavailable

AVAILABLE PLAN OPTIONS:
Materials List: Yes  ($65.00) Right-Reading Reversed Sets: Yes  ($50.00)
Mirror-Reversed Sets: Yes  ($50.00) Modifications: Yes(Call for Details)
Extra Sets: Yes ($45.00)(Call for Pricing) Basement Foundation Option: Call for Availability

Questions about house plan modifications? See our Basics and Frequently Asked Questions section.


If you don't see what you're looking for (i.e. Foundation Types, Materials Lists, House Plan Options, etc),
call us at 1-888-560-1672 or email us at questions@houseplancentral.com .

House Plan Design Line
House Main Floorplan:
Click on house plans image to enlarge
Home Floor Plans and related home images are COPYRIGHTED © by home designers and architects.



House Plan Design Line

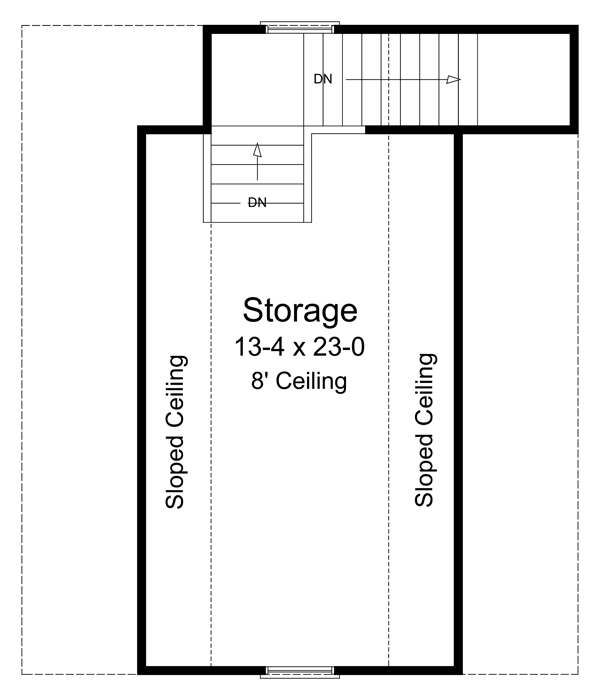

Second Floor/Bonus:
